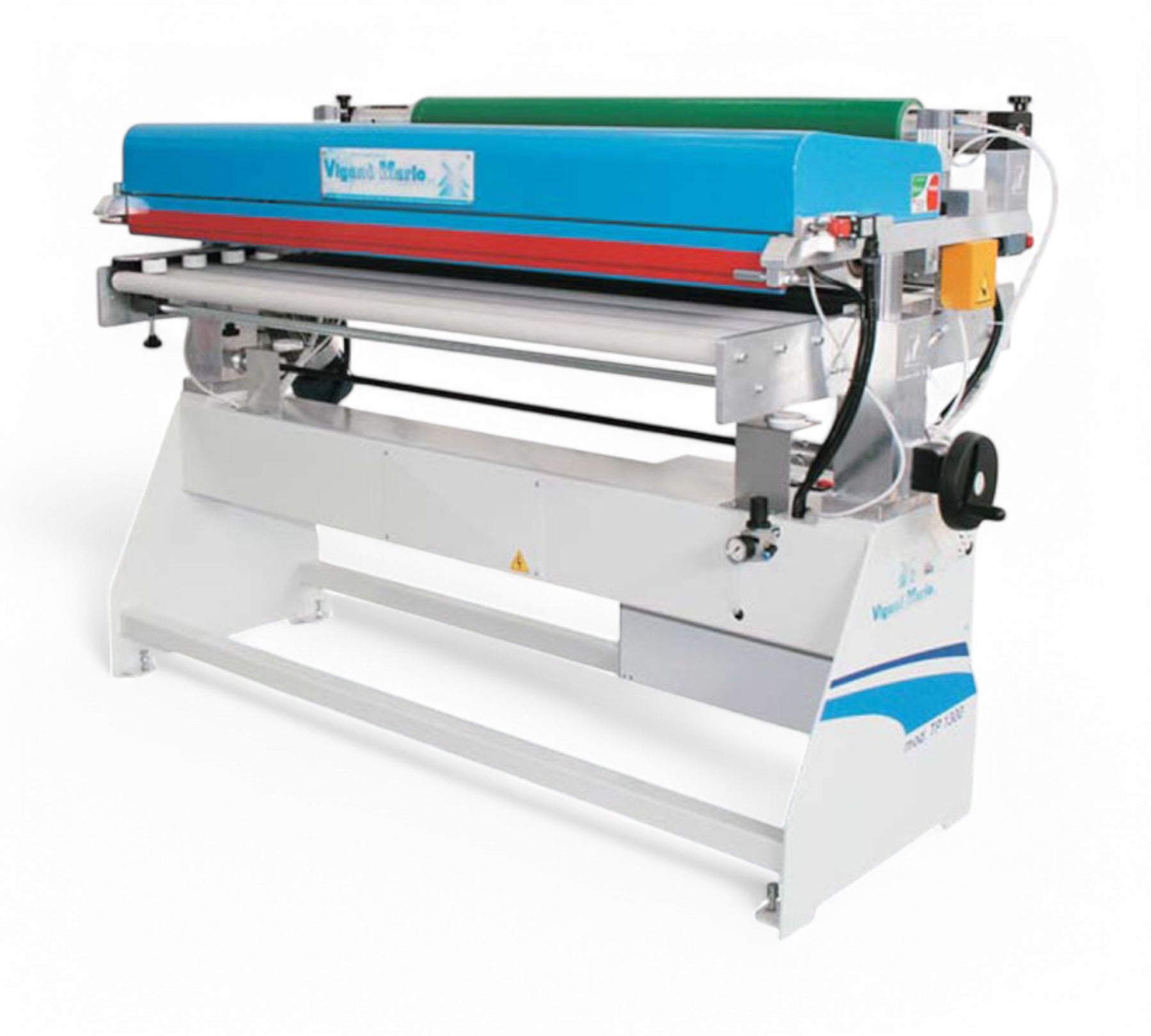

Vigano Mario TP 1300 Protective Film Applicator
The Vigano Mario TP 1300 is designed for high-precision application of self-adhesive removable protective film on flat surfaces. Built for industrial use, it ensures consistent surface protection during transport and handling, with durable construction and operator-friendly features.
Key Features:
- Protective Film Application: Applies removable film for surface protection during handling and transit.
- Automatic Film Cutting: Cuts film flush or with a 5–30 mm overhang for different packaging needs.
- Heavy-Duty Construction: Electrically-welded steel frame provides long-term durability.
- Ergonomic Worktable: Fixed at 900 mm height for comfortable operation.
- Conveyor System: PVC-covered roller conveyor - free at infeed, motorized at outfeed - for efficient material flow.
- Fixed Application Speed: Maintains consistent output at 10 meters per minute.
- Thickness Range: Handles material from 0.3 mm to 80 mm.
- SIEMENS Control Panel: On-board control system with job timer for precise monitoring.
- Operator Safety: Equipped with a safety hood and guided rubber-wheel alignment system.
- Reel Spindle: Uses aluminum cones for secure film reel fastening.
- Color Options: Available in RAL 9002, RAL 5015, and RAL 1007 to suit equipment styling.
- CE Certified: Meets European quality and safety regulations.
Technical Specifications:
| Specification | Details |
|---|---|
| Working Width | 1300 mm |
| Working Thickness | 0.3 mm to 80 mm |
| Application Speed | 10 meters per minute (fixed) |
| Overall Dimensions (L _ W _ H) | 1000 mm _ 1900 mm _ 1600 mm |
| Approximate Weight | 400 kg |
| Power Voltage | 400V 50Hz |
